Jual Pressure Switch TIVAL – One of our key focuses is on products related to and used in water applications. These are i.e. pressure transducers with contact outputs; so-called electronic pressure switches, as well as pressure transmitters providing analog output signals.
Equipment for level-monitoring and level-measurement make up a large part of our portfolio. The programme is complemented by products for flow- and temperature-measurement,softstarters (i.e. for pump applications), digital readouts, isolating switch amplifiers and many more

- Mechanical Pressure switch with perbunan diaphragm and pressure connector G 3/8“ Female thread, ALSi 12
- Pressure range from 0,11…32 bar
- Ample wiring room
- Easy to adjust, upper and lower switch points can be adjusted independently of each other
- High repeatability
- Easily read scale
- Pressure connector G 3/8“ Female thread, ALSi 12. VDE 0660, IEC 337-1, IEC 553-1
- Monitoring and controlling the pressure of liquid or gaseous media in
- pipelines, tanks, vats, pressure vessels, firefighting equipment and apparatus
| Order reference |
Upper switch point adjustable (bar) |
Lower switch point adjustable (bar) |
Smallest diff.* (bar) |
Max. operating pressure (bar) |
Max. test pressure (bar) |
Standard setting (bar) |
Part No.
|
|---|---|---|---|---|---|---|---|
| FF 4-2 DAH | 0,11 … 2 | 0,04 … 1,89 | 0,07 0,11 | 20 | 40 | 0,5 / 1,5 | 1010061 |
| FF 4-2 DAH G | 0,11 … 2 | 0,04 … 1,89 | 0,07 0,11 | 20 | 40 | 0,5 / 1,5 | 1010109 |
| FF 4-4 DAH | 0,22 … 4 | 0,07 … 3,75 | 0,15 0,25 | 24 | 40 | 1 / 3 | 1010062 |
| FF 4-4 DAH G | 0,22 … 4 | 0,07 … 3,75 | 0,15 0,25 | 24 | 40 | 1 / 3 | 1010012 |
| FF 4-8 DAH | 0,5 … 8 | 0,2 … 7,5 | 0,3 0,5 | 30 | 40 | 2 / 6 | 1010078 |
| FF 4-8 DAH G | 0,5 … 8 | 0,2 … 7,5 | 0,3 0,5 | 30 | 40 | 2 / 6 | 1010096 |

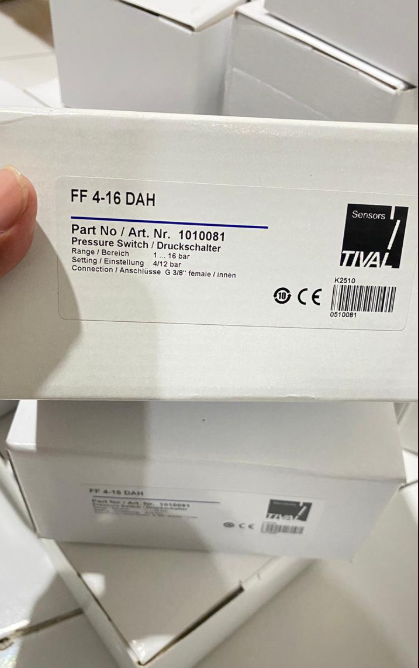

| FF 4-16 DAH | 1 … 16 | 0,4 … 15 | 0,6 1 | 36 | 48 | 4 / 12 | 1010081 |
| FF 4-16 DAH G | 1 … 16 | 0,4 … 15 | 0,6 1 | 36 | 48 | 4 / 12 | 1010102 |
| FF 4-32 DAH | 2 … 32 | 0,8 … 30 | 1,2 2 | 52 | 64 | 10 / 20 | 1010076 |
| FF 4-32 DAH G | 2 … 32 | 0,8 … 30 | 1,2 2 | 52 | 64 | 10 / 20 | 1010003 |
| * at lower … higher end of range | |||||||
