Kunkle Valve

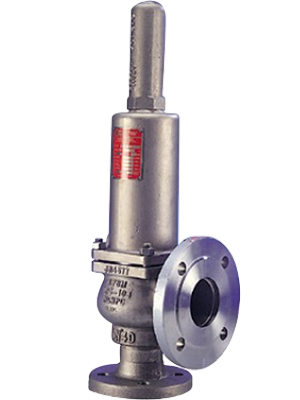

Kunkle Safety Valve
Type 746
A top guided, full lift safety relief valve with an unobstructed seat bore to ensure the highest possible discharge rates, with the choice of conventional or balanced bellows designs
Featured :
- Freely pivoting disc ensures correct alignment with the nozzle.
- Highest possible discharge rate maximizes plant protection.
- Special disc style for liquid applications enhances valve performance.
- Conventional arrangement suitable for applications where built up pressure will not exceed 5%.
Kunkle Safety Valve
Type 756
The 756 safety valve combines a top piston guided valve and an unobstructed seat bore with a full lift capability, giving maximum discharge capacity
Featured :
- Design incorporates an adjustable blowdown ring.
- Meets all the requirements of BS6759 Part 1.
- Freely pivoting disc and precision lapped stainless steel trim give positive re-seating for steam duty.
- Fitted with a test lever for inline testing as standard.

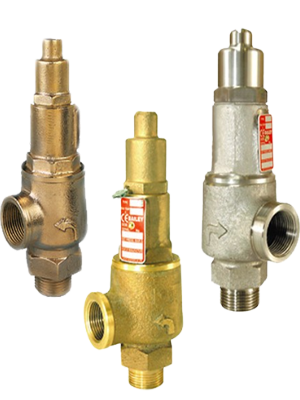

Kunkle Safety Valve
Type 480/485/490
A spring operated liquid relief valve available in all bronze, bronze with stainless steel trim or all stainless steel constructions
Featured :
- Cartridge type assembly which can be withdrawn from the body without disturbing the spring setting, and hence relieving pressure, allows the seating surfaces to be cleaned without the need to reset the valve.
- 480 is a bronze relief valve.
- 485 is bronze with a renewable stainless steel seat and disc.
- 490 is all stainless steel.
