Gala Brass Ball Valve
Threaded Type 600 WOG
Gala Ball Valve, Suitable for frequent operations, opening and closing quickly and easily. GALA BALL VALVE. Simple structure, small volume size, light weight and easy to maintain.It is not restricted by the installation direction, fluid direction can be bidirectional
Fig. 1207 / 1640
Screwed Body Cap • Blow-out Proof Stem
Technical Specifications
Comprehensive structural data engineering and heavy pressure control matrices certified for premium operations.
⚙️ Key Structural Elements
- Body Design: Screwed Body Cap, Full Bore
- Size Range: 1/4" to 2" (8mm - 50mm)
- Working Pressure (WOG): 600 PSI (41.3 bar) Non-Shock
- Saturated Steam: 150 PSI
- Body/Cap Material: Brass (ASTM B124 C37700 / CW617N)
- Ball Element: Brass + Mirror Chrome Plated
- Seat Seals Matrix: PTFE (Pure Virgin Teflon)
- Applicable Media: Water, Oil, Gas (WOG System)
📐 Engineering Dimension Matrix
| Size (Inch) | DN (mm) | L (mm) | H (mm) |
|---|---|---|---|
| 1/2" | 15 | 48.5 | 48 |
| 3/4" | 20 | 55.0 | 52.5 |
| 1" | 25 | 64.5 | 58 |
| 1-1/2" | 40 | 85.0 | 76 |
| 2" | 50 | 99.0 | 90 |
Similar System Hardware by GALA
Explore alternative industrial-grade heavy bronze and brass mechanical valves.

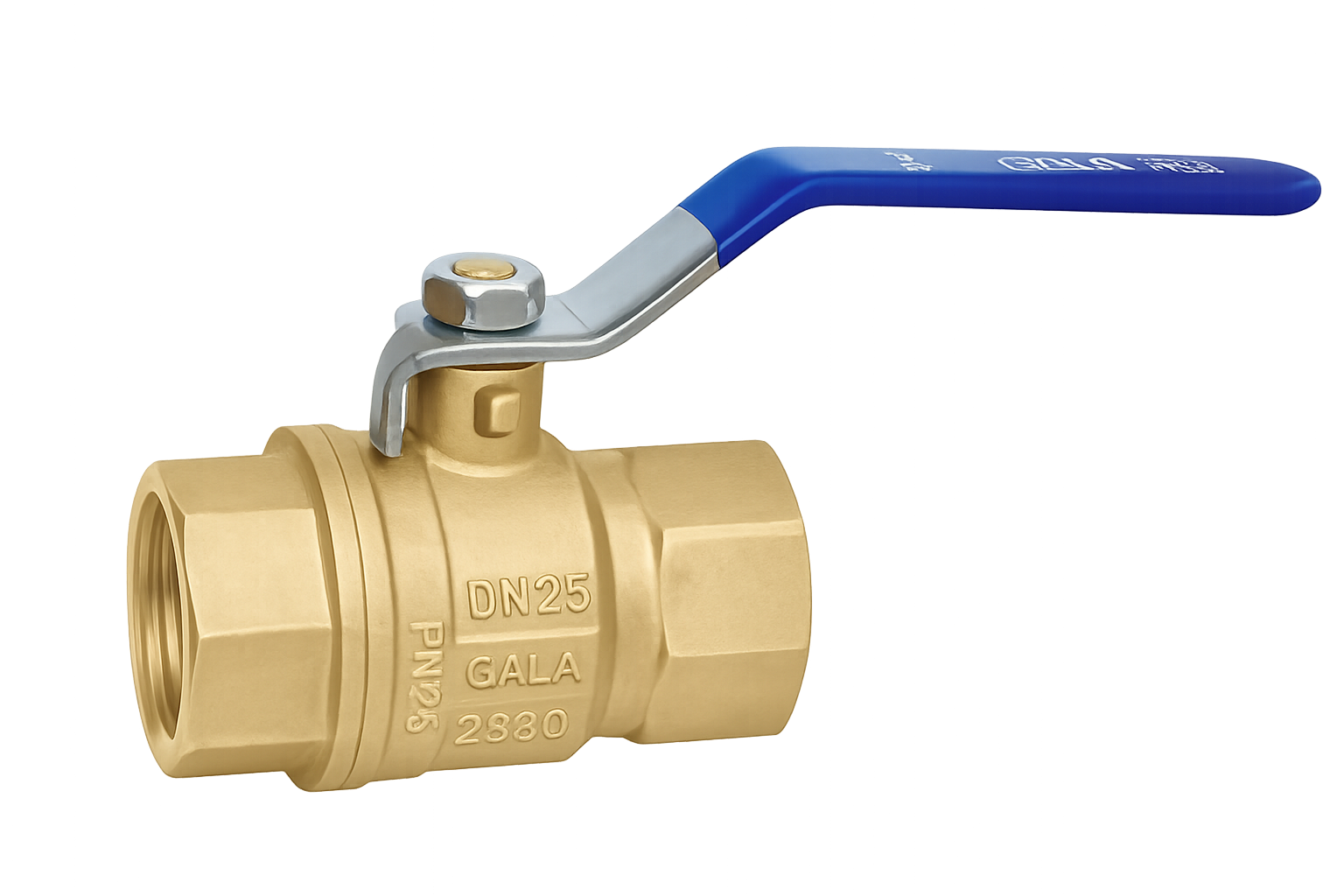

Gala Bronze Ball Valve
Gunmetal B62 infrastructure configuration optimized for deep brackish and high salt-marine resistance.

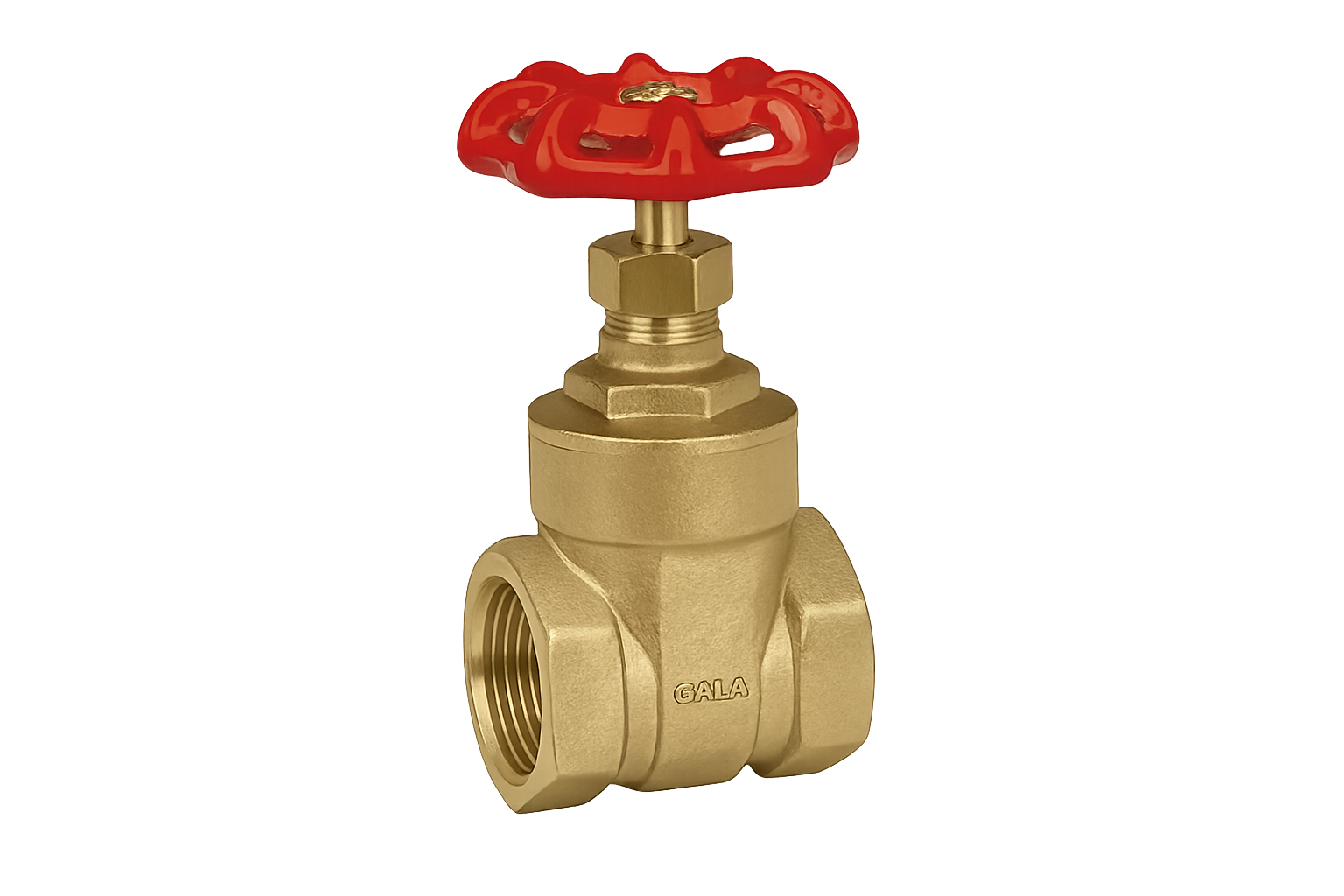

Gala Brass Gate Valve
Non-Rising Stem (NRS) mechanics engineering designed for steady fluid distribution lines.

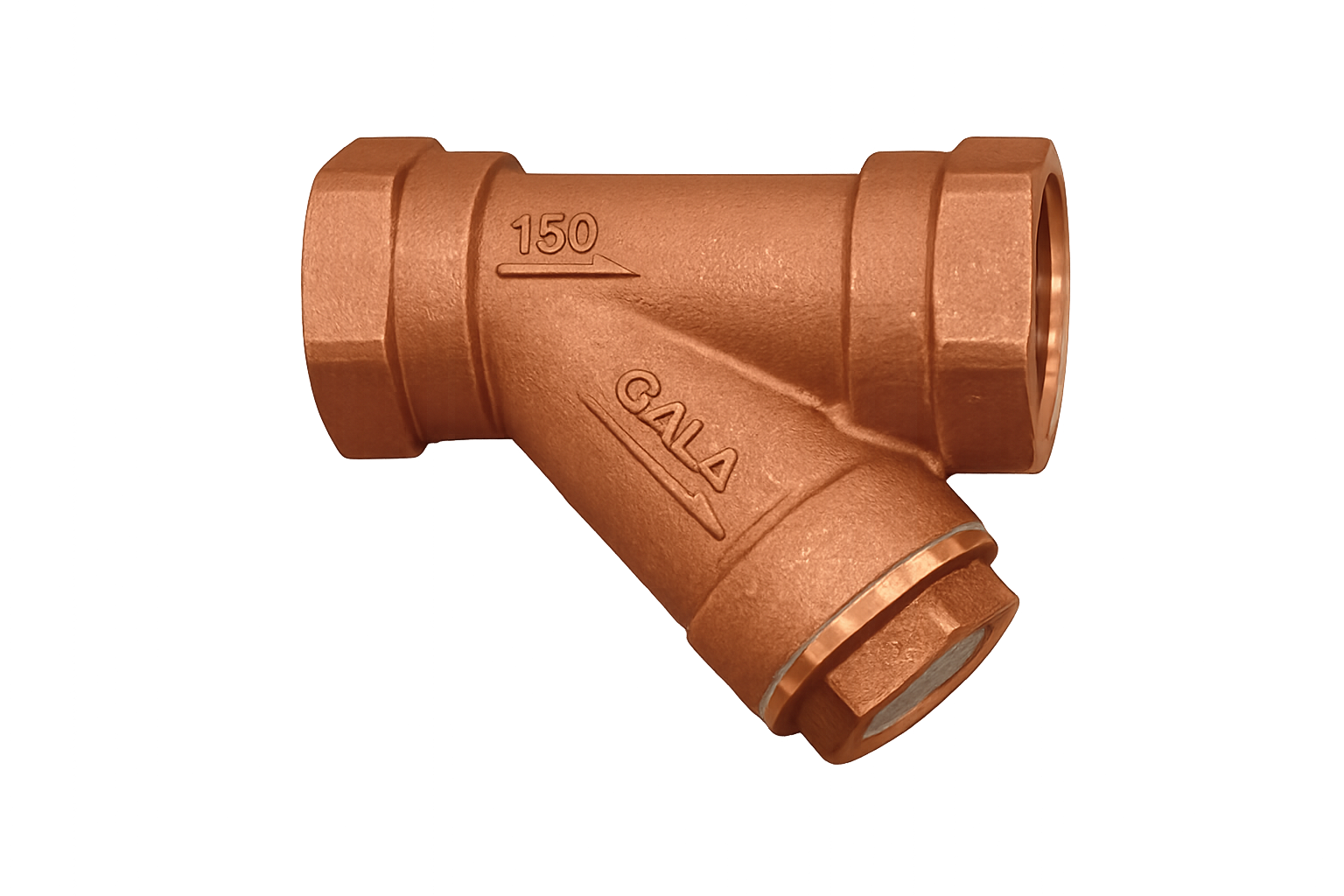

Gala Brass Y-Strainer
Rugged safety brass housing layout equipped with dual layered screen filters to safeguard line equipment.

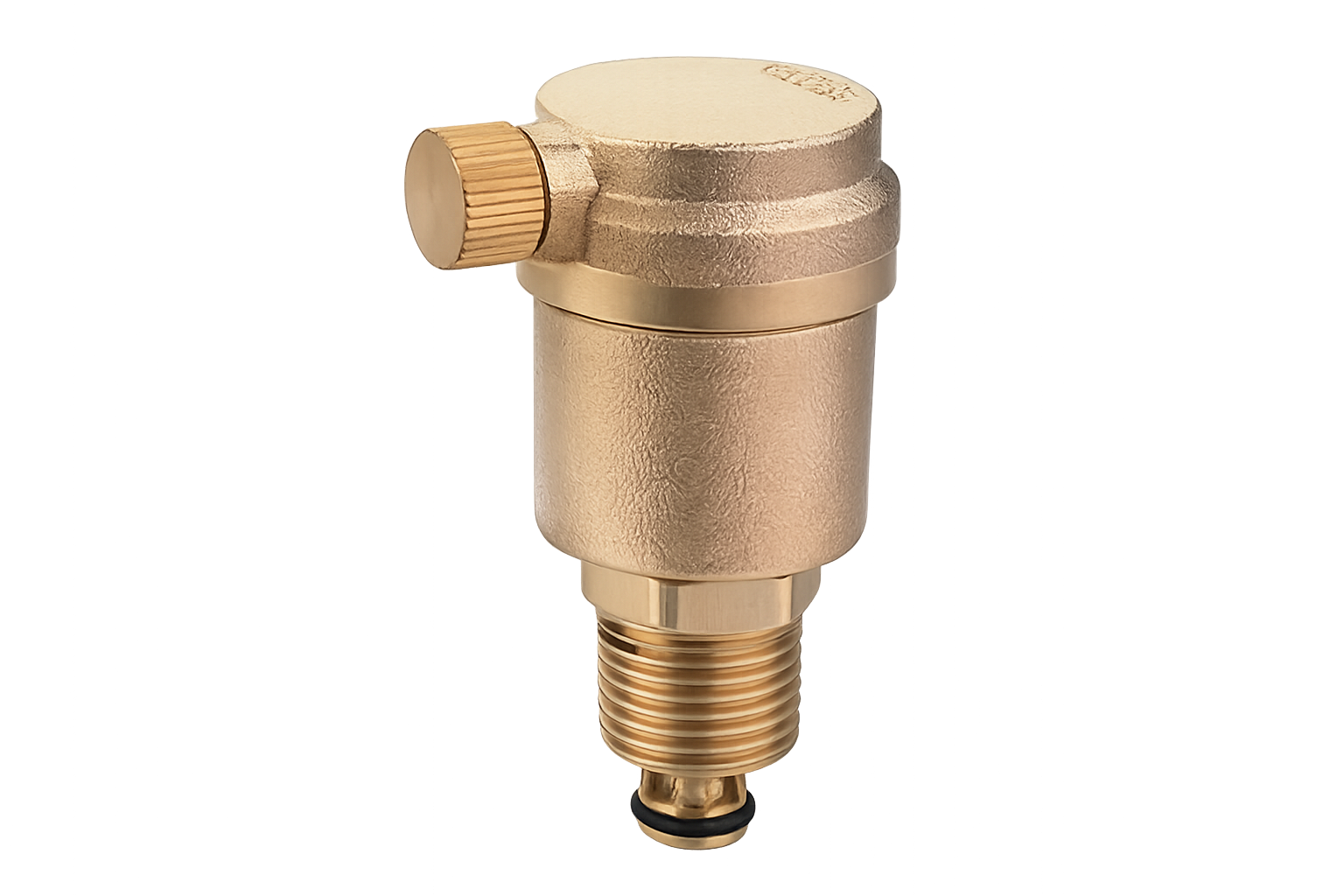

Gala Brass Auto Air Vent
