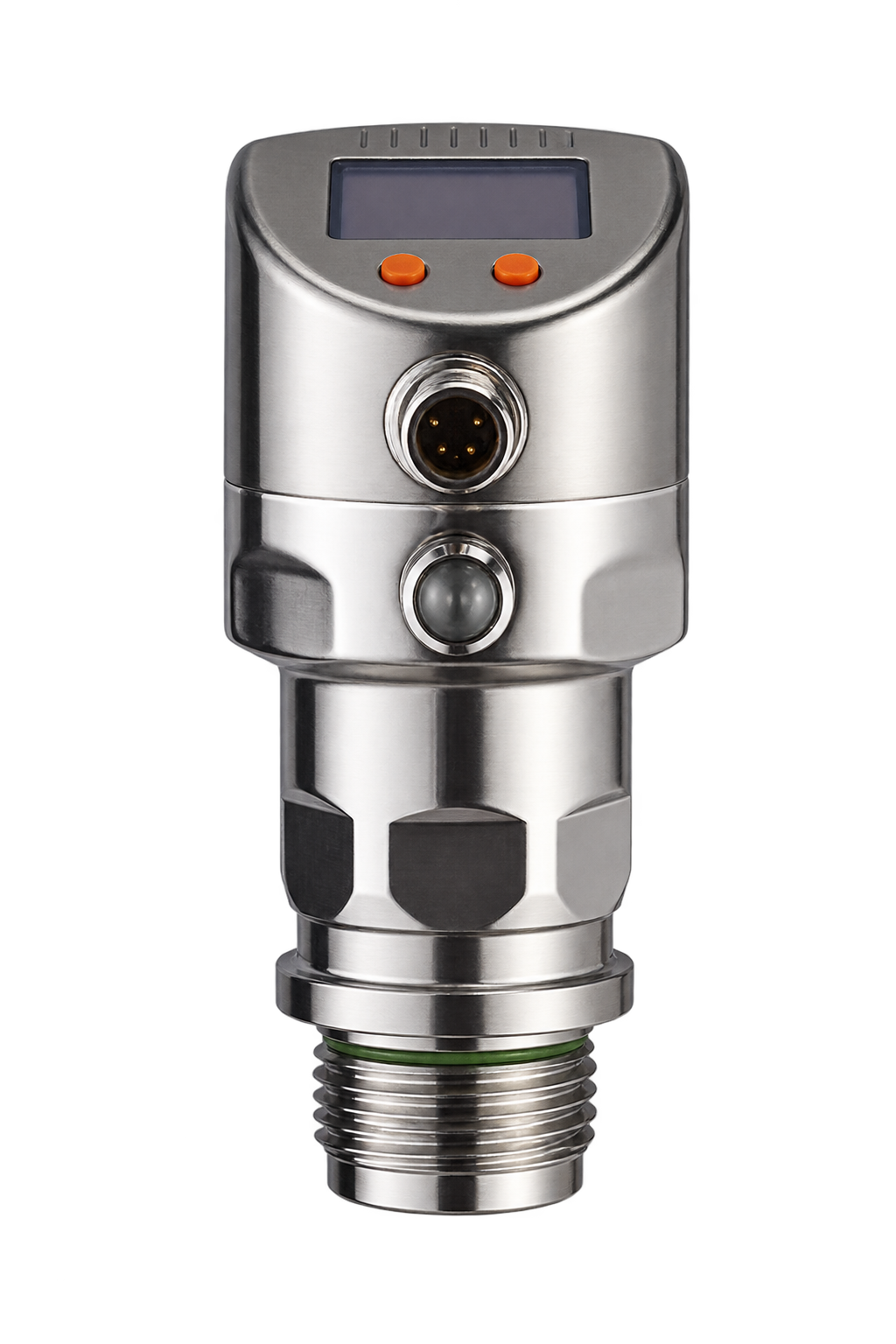

IFM Flush Pressure Sensor PI2798
The IFM PI2798 (PI-25BREA01-MFRKG/US//P) is a high-precision,flush-mounted pressure transmitter engineered specifically for hygienic applications,liquid media,and viscous fluids. Designed with a robust ceramic-capacitive measuring cell and a flush diaphragm,it eliminates media buildup and deposit formation,making it ideal for strict sanitary environments.
Widely used in the food & beverage,pharmaceutical,chemical processing,and biotechnology industries for accurate level and pressure monitoring.
Request For QuoteTechnical Specifications
| Parameter | Standard Specification |
|---|---|
| Product Code | PI2798 (PI-25BREA01-MFRKG/US//P) |
| Manufacturer | IFM Efector / IFM Electronic |
| Measuring Range | -1...25 bar / -14.5...362.5 psi (-0.1...2.5 MPa) |
| Process Connection | G 1 A / Aseptoflex V4A Flush Connection |
| Output Signal | Analogue Signal (4...20 mA) & Switching Signal (PNP/NPN) / IO-Link |
| Operating Voltage | 18...30 V DC |
| Housing / Material | Stainless Steel (316L / 1.4404),PEI,FKM |
| Medium Temperature | -25...125 °C (145 °C max. 1h for CIP/SIP cleaning) |
| Protection Rating | IP 67 / IP 68 / IP 69K |
| Electrical Connection | M12 Connector (Gold-Plated Contacts) |
