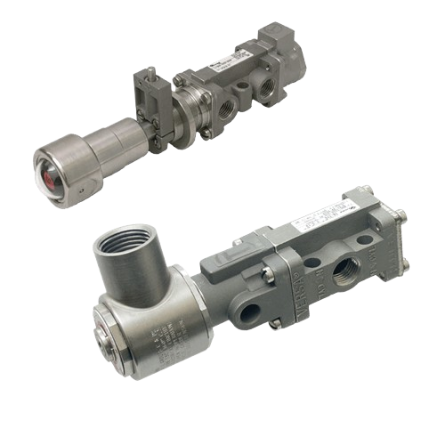

Versa Solenoid Valve – The VERSA B-316 Series is a complete line of compact, rugged three-way (3/2), side-ported valves constructed of 316 stainless steel which conforms to NACE standard MR-01-75. They are designed for use in corrosive environments and to control a variety of aggressive media as well as air. The B-316 Series is the pneumatic leader for use in process control, wellhead and safety shutdown systems.
| Specifications | |
| Actuation | Latch-Reset (Shift Away From Latch Side Latches) | Solenoid-Pilot Spring Return |
| Function | 3-way, 2-pos, NC |
| Port Size | Body Ported, 1/4″ NPT |
| Valve Pressure Range (PSI) | 50-175 psi |
| Valve Pressure Range (BAR) | 3.45-12.1 bar |
| Primary Flow | 1.6 Cv |
| Media | Air – Inert Gas, Hydraulic, Natural Gas |
| Temperature Range (F) | -4°F to 131°F |
| Temperature Range © | -20°C to 55°C |
| Body & Internal Parts | 316L Stainless Steel |
