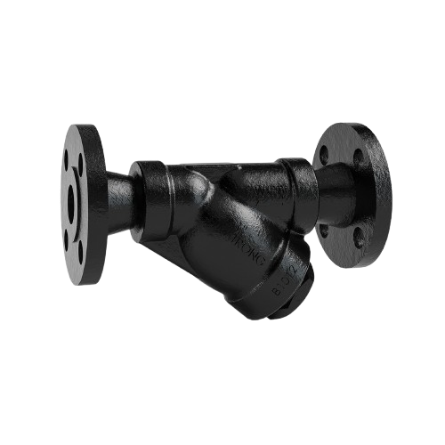

Jual Y Strainer Armstrong Surabaya – B Series Screwed, Socketweld and Flanged Y-Type Strainers feature screen chambers that won’t leak or crush. Both ends of the chambers are precisely machined. This means perfectly round and smooth seating surfaces, as well as a fixed chamber length. Since the screen seats snugly on the machined surface, no particle bigger than the screen opening can escape around the end of the screen.
Product Specifications
| Model | B | B-Flanged 150 | B-Flanged 300 | B-Flanged 600 |
| Connection Sizes |
1/2″ (15 mm) 3/4″ (20 mm) 1″ (25 mm) 1-1/4″ (32 mm) 1-1/2″ (40 mm) 2″ (50 mm) 3″ (80 mm) |
1/2″ (15 mm) 3/4″ (20 mm) 1″ (25 mm) 1-1/4″ (32 mm) 1-1/2″ (40 mm) 2″ (50 mm) 3″ (80 mm) 4″ (100 mm) 6″ (150 mm) |
1/2″ (15 mm) 3/4″ (20 mm) 1″ (25 mm) 1-1/4″ (32 mm) 1-1/2″ (40 mm) 2″ (50 mm) 3″ (80 mm) 4″ (100 mm) 6″ (150 mm) |
1/2″ (15 mm) 3/4″ (20 mm) 1″ (25 mm) 1-1/4″ (32 mm) 1-1/2″ (40 mm) 2″ (50 mm) 3″ (80 mm) 4″ (100 mm) |
| Connection Type |
Screwed, Socketweld |
Flanged Class 150 ANSI B16.5 |
Flanged Class 300 ANSI B16.5 |
Flanged Class 600 ANSI B16.5 |
| Body Material |
Cast Carbon Steel ASTM A216 Gr. WCB |
Cast Carbon Steel ASTM A216 Gr. WCB |
Cast Carbon Steel ASTM A216 Gr. WCB |
Cast Carbon Steel ASTM A216 Gr. WCB |
| Steam Non-Shock |
1,135 psig@562°F (78 bar@294℃) |
205 psig@390°F (14 bar@199°C) |
605 psig@490°F (42 bar@254°C) |
1135psig@562°F (78 bar@294°C) |
| Cold Non-shock |
1,480 psig@100°F (102 bar@38℃) |
285 psig@100°F (20 bar@38°C) |
740 psig@100°F (51 bar@38°C) |
1480 psig@100°F (102 bar@38°C |
