PRODUCT INSTRUMENTATION
BEST SELLER

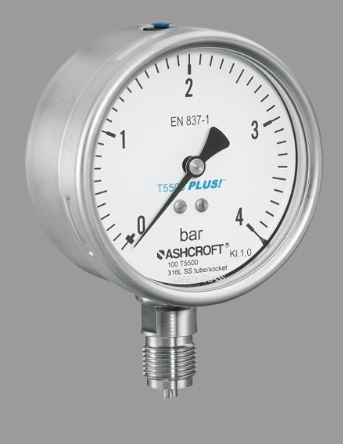

Presure Gauge Ashcrof
The Ashcroft® T5500 pressure gauge designed to EN837-1 with an open front stainless steel case designed for high performance and reliability. Features include 100 mm and 160 mm sizes, PLUS! performance, and optional ATEX approvals..
DIAL SIZE
100 mm – 160 mm
RANGE
Vacuum, compound, pressure psi: -30in., Hg-0, 0-20,000
MATERIAL
Stainless Steel
CONNECTION
¼ NPT Male, ½ NPT Male, G ¼ NPT, B Male, G ½ NPT B Male
Technical Specification
| Type | T5500/T6500 |
| Connection | G1/2 NPT, G1/4 NPT |
| Body Material | Stainless Steel |
| Case Style | T5500: Open front with rear blowout disk T6500: Solid front with full rear blowout back |
